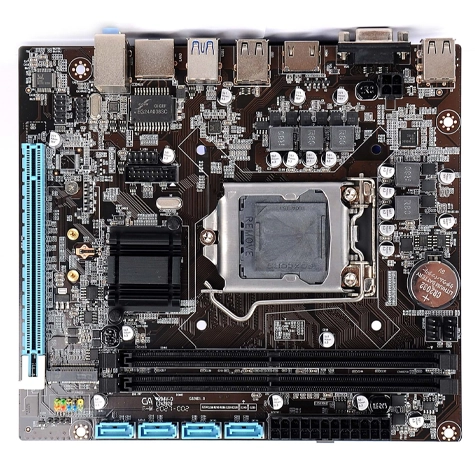

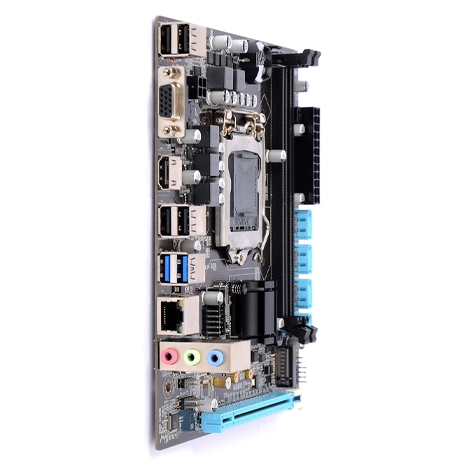

Enter E-H110 Micro-ATX Motherboard
৳ 4,700
- Model: E-H110
- CPU: Supports 6/7/8th(SKYlake). Intel 14nm CPUs （LGA1151）
- Form Factor: Micro-ATX architecture(17*19 cm)
- Memory: 2*240-pin DDR4 SDRAM slots
- Integrated LAN : Realtek 10/100 Mbps LAN onboard
-
Basic Info Brand enter Model E-H110 Supported CPU 6/7/8th(SKYlake). Intel 14nm CPUs （LGA1151） Chipset Intel H110 Express Chipset Form Factor Micro-ATX architecture(17*19 cm) Audio Realtek ALC 6-channal HD Audio Codec onboard, provides front audio interface, provides front stereo mic interface Expansion Slots PCI 1x PCI Express x16 slot, 1x NVME-M.2 connector Memory Info Type DDR4 Slots dual channal Supported Memory 2*240-pin DDR4 SDRAM slots, Memory up to 32GB, Supports dual channal DDR4 1600/1866/2133/2400 MHZ Maximum Memory 32GB Expansion slot 1x PCI Express x16 slot, 1x NVME-M.2 connector Connector & Ports Onboard interface 1x 24-pin ATX power connector, 1x 4-pin ATX 12V power connector, 2x USB connector, can support 2*USB 2.0 & 2*USB 3.0, 1x F-AUDIO connector, 1x F-PANEL connector, 1x F-SPEAKER connector, 1x FAN connector, 1x LPC-DEBUG connector LAN Port (s) Realtek 10/100 Mbps LAN onboard Supported Storage 4 x SATA 3.0 (6GB/s) ports Internal I/O Ports 4xUSB2.0 , 2xUSB 3.0, 1x VGA port, 1x HDMI port, 1x RJ45 port, 1x 3-in-1 Audio port(line in/line out/MIC in) Warranty Info: Manufacturing Warranty 03 years
