| Main Features | |
| Chipset | Intel H110 Chipset |
| Generel information | |
| Audio Chipset | Realtek Chip, ALC 6-channel audio |

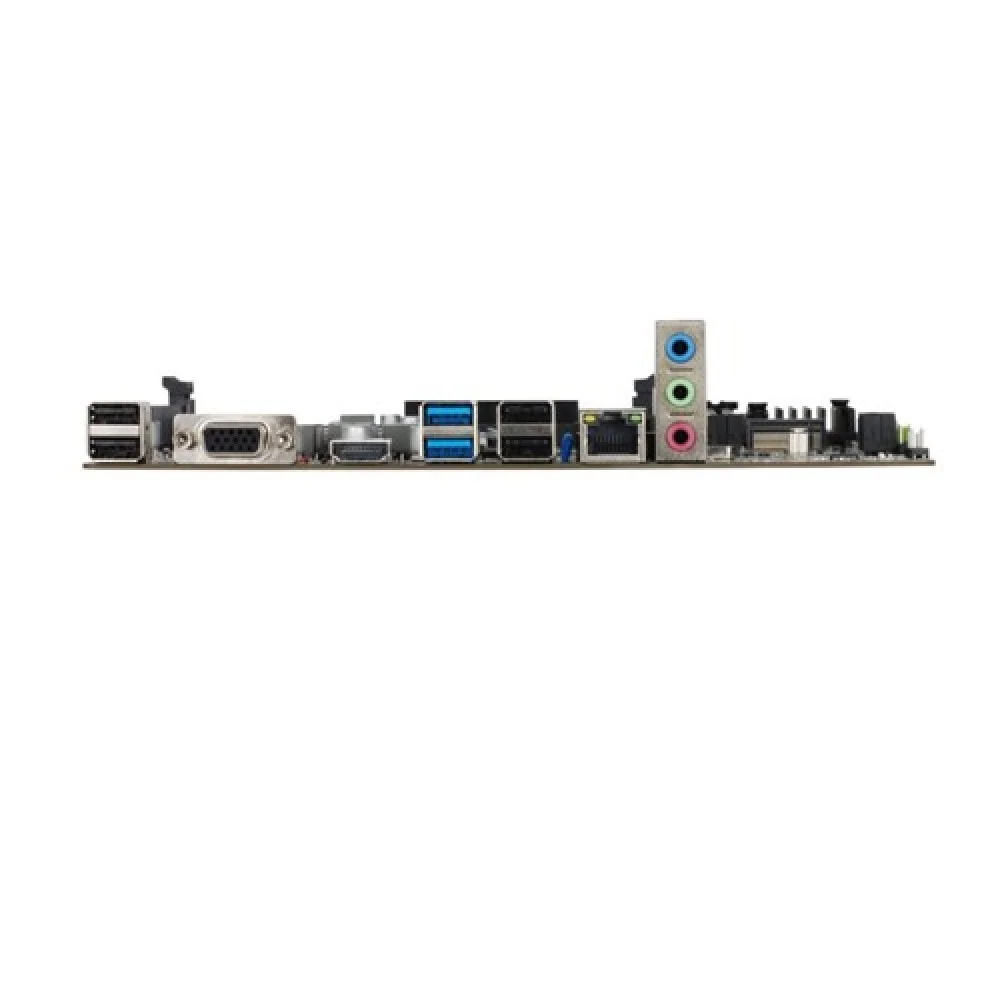

| Back Panel I/O Ports | 1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 2 x USB 3.1 Gen 1 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks |
| Dimension | 215 x 170mm |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports |
| INTERNAL I/O | 1 x USB 3.1 Gen 1 connector（19pin), supports 2*USB 3.1 Gen 1 ports, 1 x USB 2.0 connector， supports 2*USB 2.0 ports 4 x SATA 6Gb/s Ports 2 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector |
| LAN | Realtek Chip, 1 x 100M（Optional 1000M）Lan |
| Processor | Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Slots | 1 x PCIe x16 3.0/2.0 slot 1 x PCIe x16 2.0 slot |
| Storage | 1 x M.2 Socket, Supports 2260/2280 SSD 4 x SATA 6Gb/s Ports |
| USB | 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (2 at back panel, black, 2 at mid-board) |
| Memory Specifications | |
| Memory Type | DDR4 |
| Warranty Information | |
| Warrantty | 1 Year |
