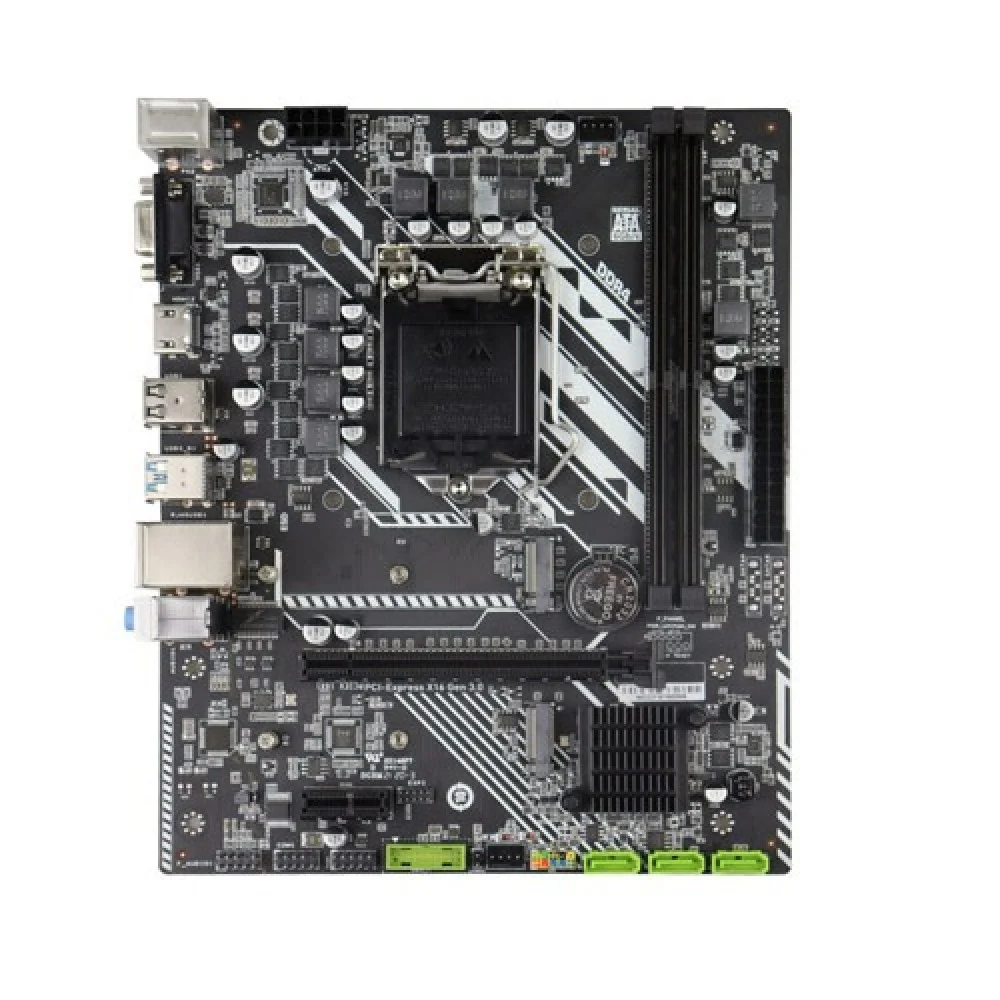

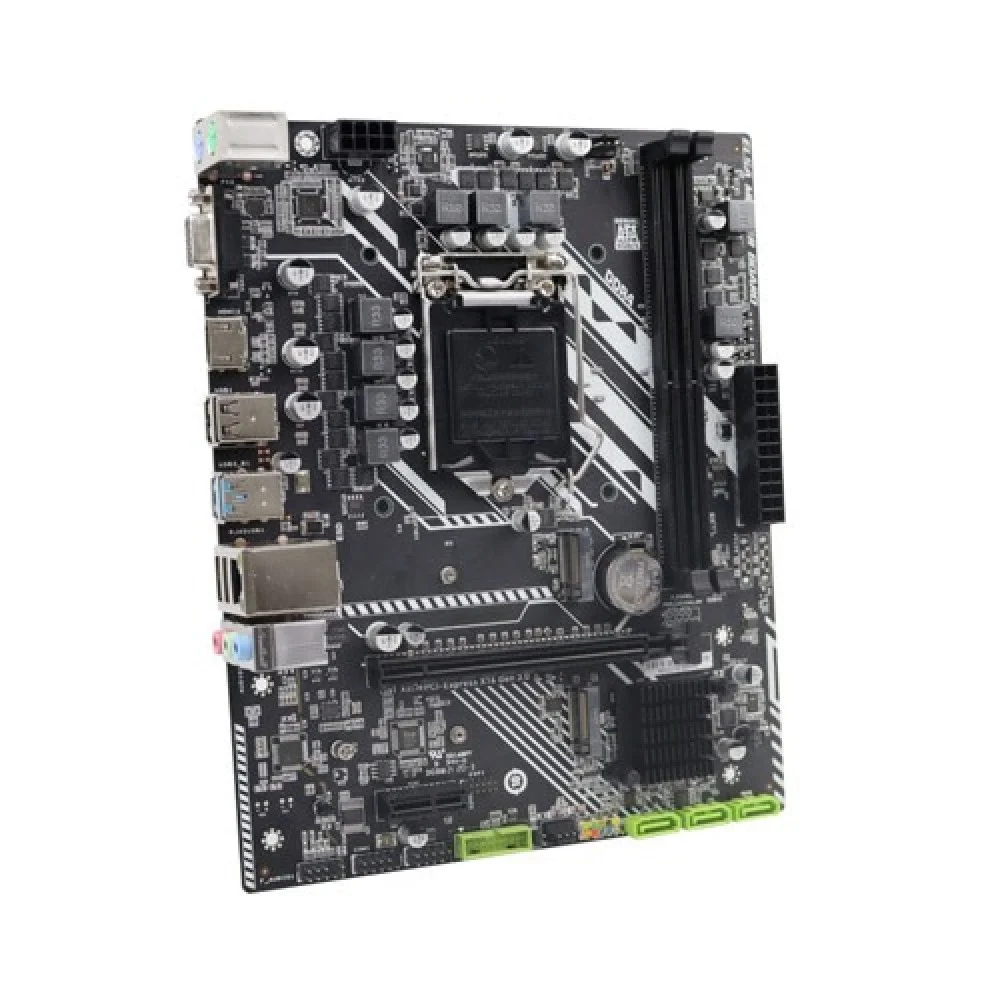

Esonic Intel H510DA DDR4 Motherboard
৳ 6,100
-
Key Features
- Memory Type: DDR4
- Storage Interface: 3x SATA 6Gb/s Ports
- USB Ports: 4 USB 3.0 / 6 USB 2.0
- Dimension: 220 x 179mm
| Main Features | |
| Chipset | Intel H510 Chipset |
| Generel information | |
| Audio Chipset | Realtek Chip, ALC 662 6-channel audio |

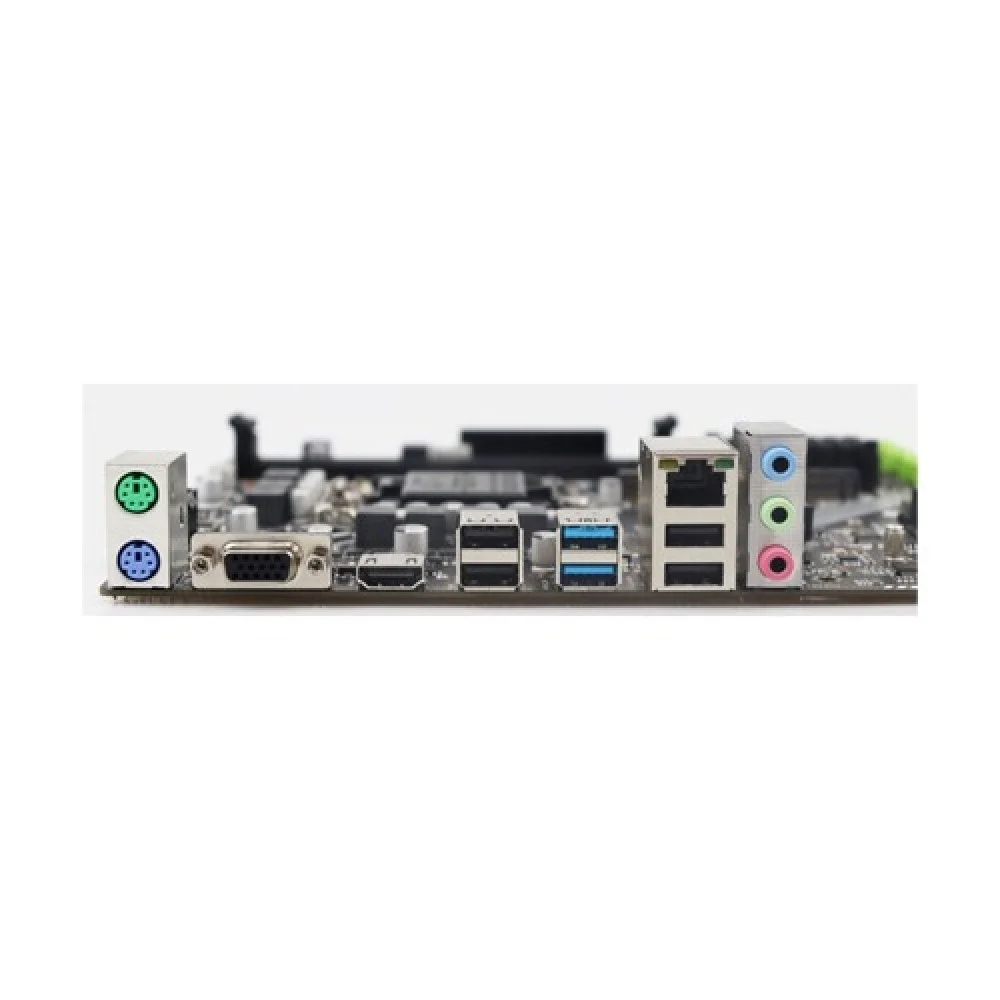

| Back Panel I/O Ports | 1 x PS2 Keyboard & Mouse Port 1 x VGA Port 1 x HD Port 1 x LAN (RJ45) Port 2 x USB 3.1 Gen 1 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks |
| Dimension | 220 x 179mm |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI / VGA ports |
| INTERNAL I/O | 1 x USB 3.1 Gen 1 connector（19pin)， supports 2*USB 3.1 Gen 1 ports 1 x USB 2.0 connector， supports 2*USB 2.0 ports 1 x COM connector 1 x DEBUG connector 5 x SATA 6Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 8-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector |
| LAN | Realtek Chip, 1 x 100M（Optional 1000M） |
| Processor | Support Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Slots | 1 x PCIe 3.0/2.0 x16 slot 1 x PCIe 3.0/2.0 x1 slot |
| Storage | 2 x M.2 Socket, Supports 2260/2280 SSD 3 x SATA 6Gb/s Ports |
| USB port | 4 USB 3.0 / 6 USB 2.0 |
| Memory Specifications | |
| Memory Type | DDR4 |
| Warranty Information | |
| Warrantty | 3 Years |
