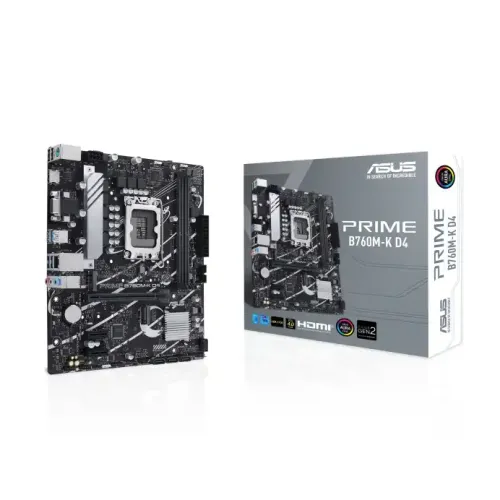

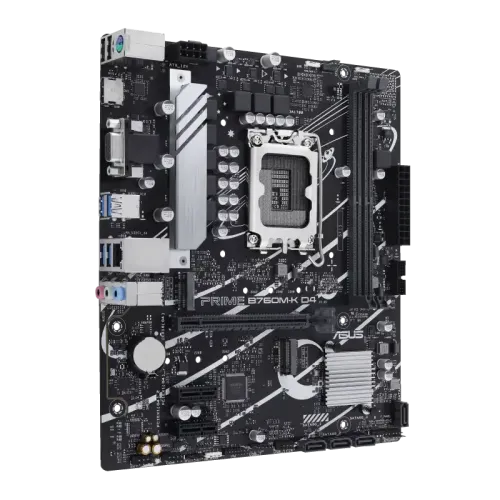

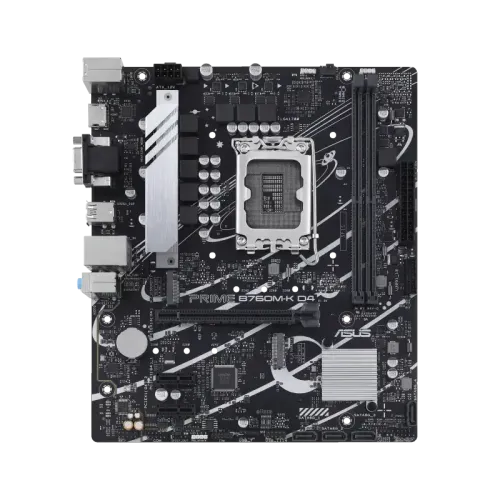

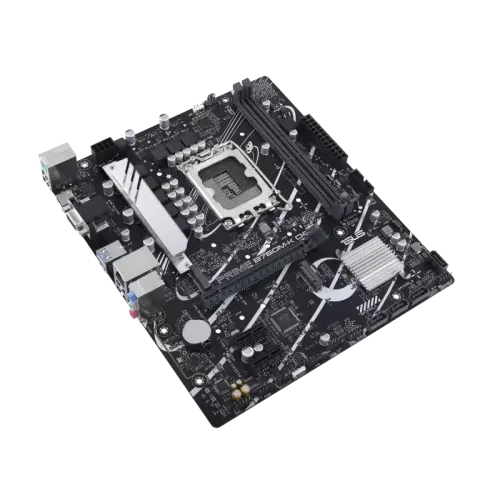

Asus PRIME B760M-K D4 mATX Motherboard

Original price was: ৳ 16,000.Current price is: ৳ 14,900.

Key Features

Model: PRIME B760M-K D4
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DDR4, Max. 64GB 5333(OC)
Graphics Output: 1 x VGA port, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে *

Category: ASUS

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	1 x VGA port 1 x HDMI port
Connector & Ports
HDMI	1 x HDMI port
VGA (s)	1 x VGA port

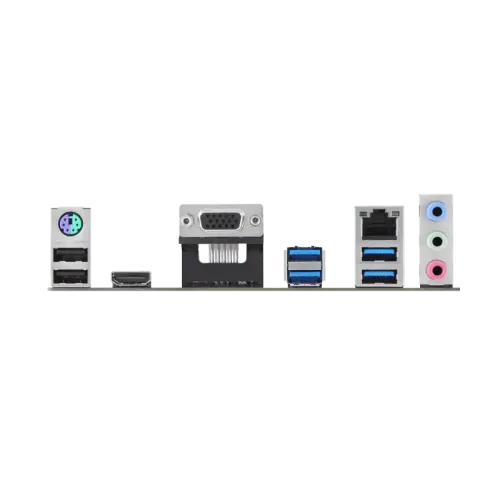

USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – VRM heatsink design Aura Sync – Aura RGB header – Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert – Power Saving AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years warranty

Overview

The ASUS Prime B760M-K D4 MATX motherboard is designed to provide exceptional performance and versatility for your computing needs. This high-quality board features a compact design, perfect for small form-factor builds while maintaining robust functionality.

Key Features

Equipped with the latest Intel technologies, the ASUS Prime B760M-K D4 supports a variety of CPUs, ensuring speedy performance and multitasking capabilities. With multiple connectivity options, including USB 3.2 and SATA, users can easily connect their peripherals and storage devices.

Reliable Performance

The motherboard’s intelligent cooling system and thoughtfully designed architecture help to maintain stable performance even under heavy loads. The ASUS Prime B760M-K D4 is the perfect foundation for any power user looking for reliability and efficiency in their build.
