Specification:
| Model | Pro WS WRX90E-SAGE SE |
| CPU | AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series*
*Refer to www.asus.com for CPU support list. |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DIMM slots, DDR5, ECC Registered Memory* 8 Channel Memory Architecture*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/. |
| Expansion Slots | AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode)*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) **To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel dual 10Gb Ethernet ASUS LANGuard |
| USB | Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 ports (2 x Type-A )Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-bit/192 kHz playbackAudio Features – Premium audio capacitors – Dedicated audio PCB layers – Unique de-pop circuit *A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related USB Miscellaneous |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with SPS) – ESD Guards – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/OASUS Q-Design – M.2 Q-Latch – Q-Release Slim (with PCIe SafeSlot) – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution ASUS EZ DIY Bespoke Motherboard Design & Business-Focused Features BMC Related |
| Software Features | ASUS Exclusive Software Armoury Crate – Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial)UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUSTeK. EzFlash Utility FlexKey IT Management software supported |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Manageability | WOL by PME, PXE (UEFI mode) |

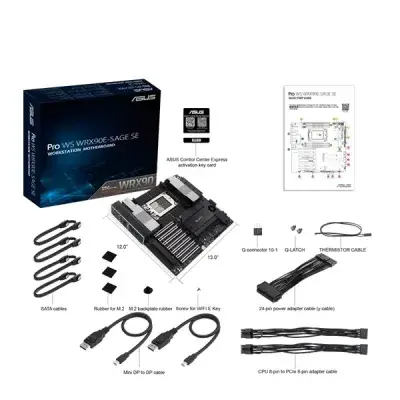

| Accessories | Cables 2 x PCIe 8-pin to CPU power cables 1 x 24-pin power cable (Y cable) 2 x Mini DisplayPort cables 4 x SATA 6Gb/s cables 1 x Thermistor cable packMiscellaneous 1 x Q-connector 1 x M.2 Q-Latch package 1 x AMI license sticker 4 x M.2 rubber packages 1 x Screw package for M.2 Key E Documentation |
| Operating System | Windows 11 Windows 10 64-bit |
| Form Factor | EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm) |
| Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
Description:

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard is designed for high-performance workstations that need excessive power, speed, and dependability. It supports AMD sTR5 socket for Ryzen Threadripper PRO 7000 WX-Series processors with up to 96 cores, and up to 2TB ECC R-DIMM DDR5 memory. The board features seven PCIe 5.0 x16 slots for multi-GPU setups, perfect for AI computing, rendering, and simulation. Storage is fast and nimble with four PCIe 5.0 M.2 slots and two SlimSAS ports for industrial SSDs. Two Intel X710-AT2 10Gb LAN ports provide server-grade networking, along with a dedicated 1Gb LAN for onboard BMC remote management. Two USB4 40Gbps Type-C ports, six USB 10Gbps Type-A ports, and a front USB 20Gbps Type-C offer high-speed data transfer and connectivity to modern devices.
The 32+3+3+3 power-stage design with two 8-pin CPU connectors offers reliable performance even at heavy loads. Active VRM cooling, chipset cooling, and massive M.2 heat sinks with fans ensure low temperatures during prolonged use. More PCIe power connectors allow multiple high-power graphics cards to be supported. ASUS Q-Release Slim PCIe is easy to remove GPUs from, and SafeSlot and SafeDIMM designs protect PCIe and memory slots. Tool-free installation via the Q-Latch system is available for M.2 SSD. Full fan controls that run through UEFI BIOS, IPMI web UI, or Fan Xpert 4 software, based on several thermal sensor inputs, are available.
Built for 24/7 uptime, this board is thoroughly tested at 45°C and 80% humidity, and it’s designed to perform flawlessly in demanding environments. The backplate protects components, and server-grade IPMI with ASUS Control Center Express software offers total remote manageability. The motherboard delivers power, connectivity, and stability for commercial workloads in AI, 3D design, software programming, and beyond.
Buy ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard in Bangladesh
You can buy your desired ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
